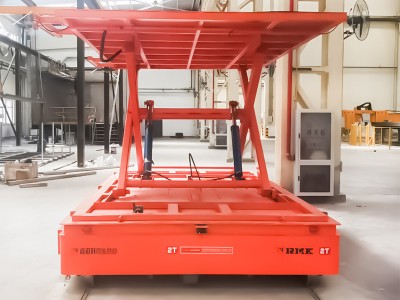

Automated rail transfer trolley

RGV automated rail transfer trolley, with high speed, high reliability, low cost and other characteristics, is mainly used for industrial materials transport and workshop assembly and widely used in automated workshops. Remarkable provides various customized RGV automated rail transfer trolleys，such as the ferry rail transfer trolley, the vertical and horizontal moving automated rail transfer trolley, etc.

Ps:Depending on your specific needs,our transfer carts/trolleys could be installed Various types of functions and devices.

Customizable Items

Technical parameters for Battery powered rail transfer carts KPX series
Model		KPX-2t	KPX-5t	KPX-10t	KPX-20t	KPX-25t	KPX-30t	KPX-40t	KPX-50t	KPX-150t
Rated Load（t)		2	5	10	20	25	30	40	50	150
Table Size(mm)	Length	2000	3500	3600	4000	4500	4500	5000	5500	10000
	Width	1500	2000	2000	2200	2200	2200	2500	2500	3000
	Height	450	500	500	550	600	600	650	650	1200
Wheel Base(mm)		1200	2500	2600	2800	3200	3200	3800	4200	7000
Rail Inner Gauge(mm)		1200	1435	1435	1435	1435	1435	1435	1435	2000
Wheel Diameter(mm)		270	300	300	350	400	400	500	500	600
Wheel Quantity		4	4	4	4	4	4	4	4	8
Ground Clearance(mm)		50	50	50	50	50	50	50	50	75
Running Speed(m/min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		1	1.2	1.6	2.2	3	3.5	4	5	15
Battery Capacity (Ah)		180	180	180	180	250	250	300	330	600
Battery Voltage(V)		24	36	48	48	48	48	48	48	72
Running Time When Full Load		4.32	5.4	4.8	4	4	3.5	3.6	3.3	2.9
Running Distance for One Charge (Km)		6.5	8.1	7.2	4.8	4.8	4.2	4.3	4	3.2
Max Wheel Load (KN)		14.4	25.8	42.6	77.7	94.5	110.4	142.8	174	266
Reference Weight(t)		2.8	3.6	4.2	5.9	6.5	6.8	7.6	8	27
Recommended Rail Model		P15	P18	P18	P24	P38	P38	P43	P43	QU100
1、Load capacity, table size and rail gauge can be customized; 2、Options: Remote radio control (imported or made in china); 3、Automatic stop when detecting obstacle or person ,limit switches (to limit travel); 4、Battery type (Free of maintenance Battery, Lithium battery, Explosion-proof battery, and Anti-high temperature battery); 5、Motor (DC motor with brush and DC motor brushless); 6、Electrical parts (imported or made in China).

50 Ton Rail Electric Traction Trolley
15 ton explosion-proof electric rail transport cart apply aerospace equipment
Coil transport cart applied in the field of new energy

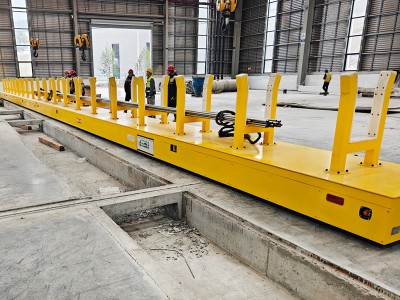

Steel industry rail transfer trolley
Coil transfer cart Automated electric rail transfer trolley
35 tons lifting automated rail transfer trolley
12 tons battery steel billet automatic rail transfer cart
Casting Industry Rail Tractor RGV trolley
RGV Automated Rail Transport Platform
RGV automatic rail transfer cart for machinery manufacturing
2 tons RGV Automated Rail Transport Platform
warehouses industrial Automated rail transfer trolley
30 Tons Rail guide vehicle electric transfer cart coli transport car
Model Transportation Tool material handling between factories
Railway shunting hook removal robot-Automated rail transfer cart
Coil Automated Rail Transfer Cart
40 Tons+40 Tons Dual Cart Linkage Automated RGV

Typical Application

Multi-device cooperation

In intelligent factories and automated workshops, transfer carts/trolleys must be highly intelligent or AGVizd, and can work with other equipment and operation platforms to realize intelligent manufacturing and fully automaed production. In response to such needs, Remarkable has designed and produced multifunctional transfer cart and multivehicle coordinated operation transfer cart. Various devices can be installed on the countertop of the multifunctional transfer cart and multivehicle coordinated operation transfer cart to fit the intelligent requirements and automated programs in customers' production processes.

Anti-high temperature & Explosion-proof

In industries such as metallurgy, coal, military, nuclear power, Chemical, sandblasting, spray painting, transfer carts/trolleys usually work in high-temperature conditions, and anti-high temperature & explosion-proof are necessary functions of transfer carts/trolleys. Coping with high temperature environment, Remarkable proposed the following solutions: using anintegral frame structure that is compressive, tensile, and anti-high temperature; installing high load bearing wheels and hot dip galvanizing grille plates with good heat dissipation performance. In order to make a cart/trolley has explosion-proof function, the electric box, wheels, car body and remote controller we have configured for it have reached explosion-proof level.

Complex and special environments

Sometimes, industrial materials need to be transported in complex and special environments, which asks more from transportation tools. Our steering wheel omnidirectional mobile trackless transfer carts and RGV automated rail transfer carts/trolleys (such as the ferry rail transfer trolley and the vertical and horizontal moving automated rail transfer trolley) can solve this kind of problem. The advantages "free and flexible driving in all directions and small turning radius" of the steering wheel omnidirectional mobile trackless transfer cart, the design of "the main vehicle and the sub-vehicle" of the rail ferry transfer trolley and the rail change function of the vertical and horizontal moving automated rail transfer trolley are specially designed for complex and special environments.

PS:In addition to the applications described above, Remarkable can solve many more industrial material handling problems. We are able to meet all your needs!

Application

Remarkable provides customized industrial handling solutions and various application material transport solutions to the world. To solve material handling problems for important customers in industries such as Aerospace industry, nuclear power, steel,shipyard,heavy industry, manufacturing, power and electrical, hydropower and wind power, petroleum, Chemical Industry, Automotive manufacturing, new energy, construction, high-speed railway bridges, metallurgy, coal, security and communication, scientific research institutions (universities), and animal husbandry. Remarkable transportation solutions are applicable to various industries around the world. Its products have been exported to the United States, Mexico, the Netherlands, Poland, Saudi Arabia, the Czech Republic, Italy, Switzerland, Türkiye, Singapore, Thailand and other countries.

Aerospace equipment

Nuclear Power

Shipyard

Power and Electrical

Automotive manufacturing

Buildings, high-speed railway bridges

Equipment manufacturing

Steel & Foundry

Chemical Industry

Oil & Natural Gas

New energy

Research institutions

Home appliance communication industry

Animal husbandry

Cooperative Customer

Faq

Frequently Asked Questions

Q: What Material To Handle?

A : ----------

Q: What’s The Transfer Car’s Load Capacity And Table Size You Need?

A : All Of Our Transfer Cars Are Made To Order, We Can Design It According To Your Requirements And Needs.

Q: Cart Traveling Type?

A : RailWheel

Q: Loading Capacity?

A : --------------Tons

Q: Platform Size?

A : ---------------Mm*-------------Mm

Q: Power Supply?

A : CableBus BarRailBatteryLow VoltageOther

Q: What Cargo Will The Car Transport?

A : Our Transfer Car Is Suitable For Steel Mill, Aluminum Plant, Metallurgical Industry, Mold Factory, Material Transfer Workshop, Shipyard, Crane Parts Transfer, Cable Coil Transfer, Precast Concrete Transfer, Ladle Transport And So On.

Q: Will The Car Move On The Cement Floor Or On The Track?

A : If It Moves On The Track, Have You Installed The Track?If It Moves On The Cement Floor, Is There Any Slope, Water Or Oil On The Floor?

Q: What’s The Car’s Working Time Per Day And Moving Distance In Single Direction?

A : We Can Suggest The Power Supply Mode For You According To Your Working Time And The Car’s Moving Distance.

Q: How Many Transfer Cars Do You Want?

A : We Don't Have A Minimum Order Limit, But We Can Give You A 5% Discount If You Buy More Than 3 Sets Of Cars.

Q: What Power Supply Mode Do You Prefer?

A : There Are Some Power Supply Modes For You Choosing, Such As Battery Power, Cable Reel Power, Cable Drum Power, Low Voltage Rail Power, Busbar Power And Diesel Engine Power.

Q: What Delivery Term Do You Prefer? FOB/CIF

A : If CIF, What’s The Destination Seaport?If FOB, We Usually Deliver The Car To Qingdao Port, But We Can Accept Your Designated Seaport.

Q: Price Term?

A : Ex-WorkFCAFOBCIF/CIPDDP/DDU

Q: What Term Of Payment Do You Accept?

A : Generally Speaking, We Accept 50%T/T Deposit In Advance,The Balance 50% Is Paid By T/T Before Dispatch. However, 30% T/T Deposit In Advance, The Balance 70% Is Paid By T/T Before Dispatch Also Can Be Accepted To Meet Your Demand In Order To Further Cooperation. Of Course, The L/C Also Is OK.

Q: How Long Is The Delivery Time?

A : About 45 Days, According To The Customer's Requirements To Complete The Delivery Time.

Q: How Many Certificates?

A : ISO9001、CE、SGS And So On.

Our products have certificates of CE, ISO9001, etc.

4P = Prediction + Pretreatment + Process + Performance

The FirstP

Prediction

At the very beginning of formulating a solution, our engineers will predict the faults that might occur during the equipment utilization relying on their rich experience, and avoid quality risks in advance.
The SecondP

Pretreatment of Material

Before getting inside the warehouse, all steel plates must be pretreated and testified to be qualified.
The ThirdP

Process Inspection

There is quality inspection in every process. The previous process can be allowed to enter the next one only if it is qualified. The whole process inspection records must be well preserved.
The FourthP

Performance Test

Before delivery, all the transfer carts/trolleys must undergo performance test, including load forward and backward, obstacle avoidance, omnidirectional mobile, slope climbing, lifting, wireless remote control, etc.
